| Ref.No | mtp2006 |
|---|

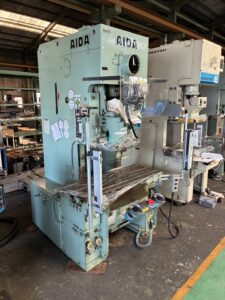

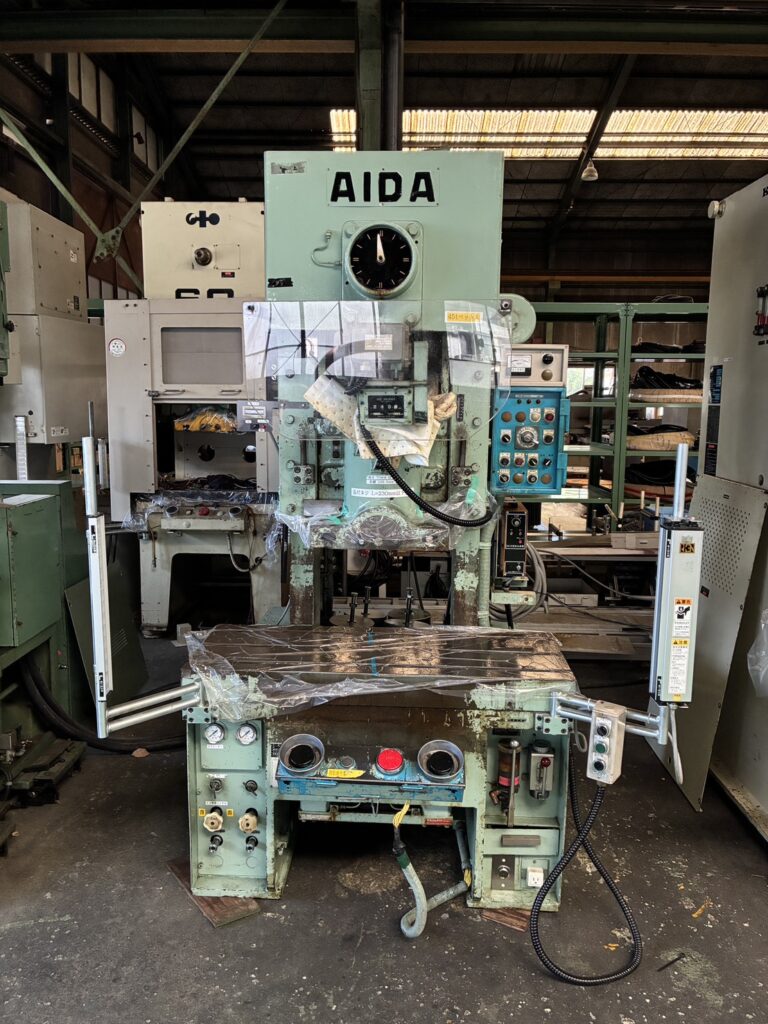

| Product Name | Gap Frame Presses |
|---|
| Capacity | 045T |
|---|
| Maker | AIDA |
|---|
| Model | C1-4(2) |
|---|
| Model Year | 1979 |
|---|
| Drive | Crank Motion |
|---|
| Stroke Length (㎜) | 120 |
|---|
| Strokes per Minute （SPM) | 80 |
|---|
| Die Height (㎜) | 270 |
|---|
| Slide Adjustment (㎜) | 60 |
|---|

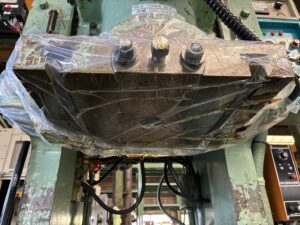

| Slide Area (LR x BR) (㎜) | 410*300 |
|---|

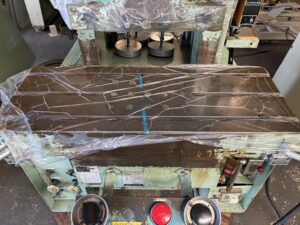

| Bolster Area (LR x BR) (㎜) | 1160*440 |
|---|
| Main Motor (kw x P) | 3.7 |
|---|
| DC | ○ |
|---|
| Light beam safety | ○ |
|---|
| Mount | ○ |
|---|
- Listed prices reflect shipping of the used machines as is, and should further maintenance by our engineers be preferable prices may differ. For further information please consult the Megatech offices.
- For inquiries regarding this product please input and fax the product number, company contact information, and contact name to +81 (0)23-643-1330 (Megatech Head Office) or submit the below digital form.
